Click here for Technical Drawing ATOGGEN180

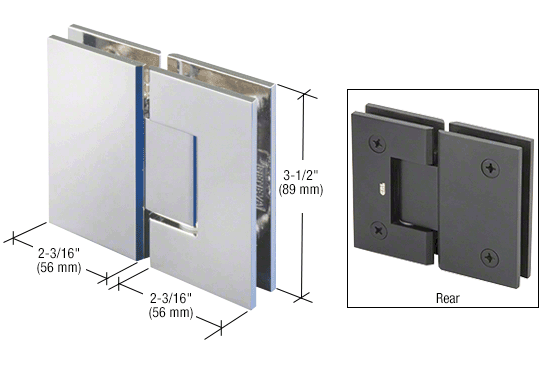

Glass to glass plate – Screws included.
Self-centering with reversible 5 degree pivot pin
Use monolithic tempered glass
Other finishes available upon request.
Three Year Warranty
CUT OUT DETAIL NEEDED
The Geneva Series of professional hinges is able to accommodate 8 mm to 12 mm glass.
