Description
Click here for Technical Drawing ATOGP1N037

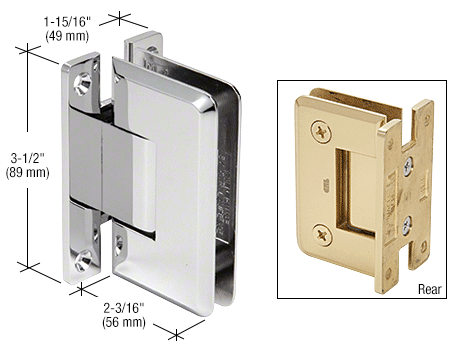

Wall mount full back plate – Screws included.
Radius corners and bevelled edges for a sleeker look
Self-centering with reversible 5 degree pivot pin
Use monolithic tempered glass
Other finishes available upon request
Three Year Warranty
CUT OUT DETAIL NEEDED
The Pinnacle Series of professional hinges is able to accommodate 8 mm to 12 mm glass.
