Geneva wall to glass hinge

£35.00 – £97.50

Finish

Brushed nickel
Matt black
Polished chrome
Antique brass
Antique bronze
Brushed bronze
Polished brass
Polished nickel
Satin brass

Clear

SKU: ATOGGEN044 Categories: Geneva, Shower Enclosures

Description

Click here for Technical Drawing ATOGGEN044

Wall mount offset back plate for a cleaner look from the closed side of the door – Screws included.
Self-centering with reversible 5 degree pivot pin
Use monolithic tempered glass
Other finishes available upon request.
Three year warranty

CUT OUT DETAIL NEEDED
The Geneva Series of professional hinges is able to accommodate 8 mm to 12 mm glass.

Additional information

Finish	Brushed nickel, Matt black, Polished chrome, Antique brass, Antique bronze, Brushed bronze, Polished brass, Polished nickel, Satin brass

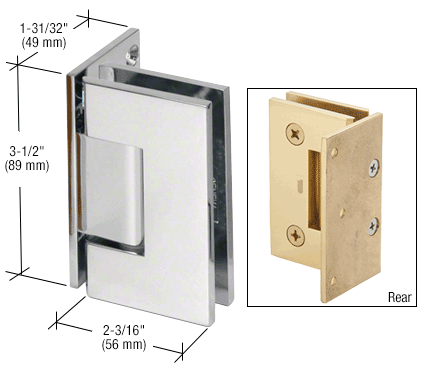

Width	31/32" (49 mm)
Height	3-1/2" (89 mm)
Depth	2-3/16" (56 mm)
